JSP- Custom Tag with Attributes

Introduction:

                       Custom tag contains many attributes. For every attribute of custom tag, we need to create a property. We use getXXX() and setXXX() methods to access and set the value for the property in the Tag handler Class.

                       Example:

< hello:Hello username=”sureshkumar”/ >





Here, username is a property of the custom tag. And the value of the username is sureshkumar.

Let us go to create custom tag with attributes.

We use TagSupport class to implement custom tag with attributes.

We include username attributes into the Tag Handler Class.

We also setXXX() for username as setUsername().

We also getXXX() for username as getUsername().

To define a custom tag with attribute in a TLD file, we need to specify that the custom tags contain attributes in the attribute elements of the TLD file. The attribute elemtn contains the following sub-elements.

name: specify the name of the attribute.

required: specify that the attribute is required or optional. If you specify required as true,the attribute value must be present in the JSP page.

rtexprvalue:specify that run-time expression, for example JSP expression can be used for this attribute. Possible  values include true,false,yes,no.

Procedure:

Step 1:

            Create project (Already we have create project named as CustomTagProject)

            You want to know how to create Project to develop the jsp page.
            Refer Following Link

Create Custom Tag – Empty Tag Example

Step 2:

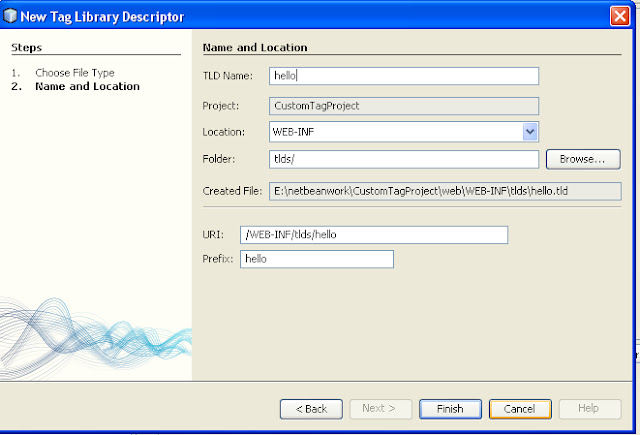

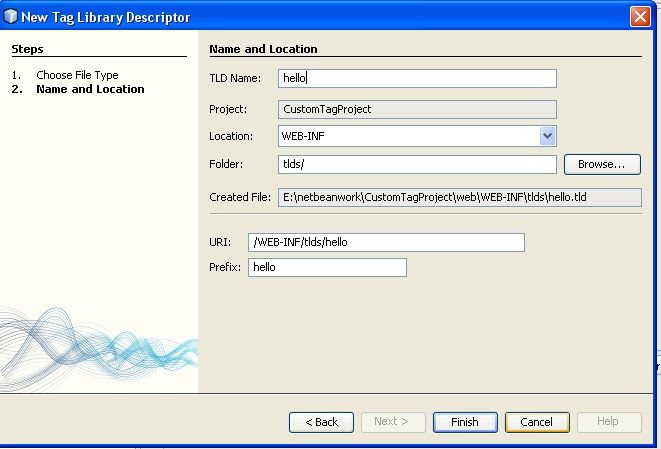

            Create TLD file. Named hello.tld

Step 3:

Create Tag Handler Class named as Hello

Already we have created Welcome Tag Handler Class in creating Empty custom tag example. Follow same steps to create Tag Handler Class.

Below display window is a Tag Handler window. Where you give Tag Handler class name such as Hello.

Tag Support Class to Extend:

Select SimpleTagSupport

Next

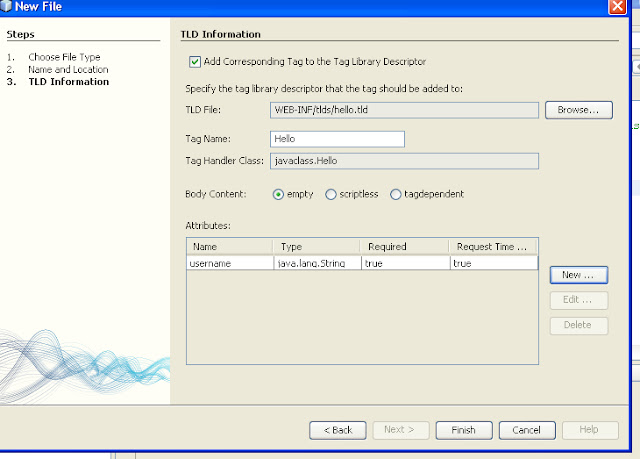

Below display window is a New File window, where you select TLD file.

Select Body content as Empty.

Add attributes from here

Click New button right side of the Attribute.

Below window display

OK

 Finish. Tag Handler named Hello will be successfully created.

Note: Made some changes in Hello.java.

Extends TagSupport class.

Add doStartTag() and doEndTag()

Hello.java

package javaclass;

import javax.servlet.jsp.JspWriter;

import javax.servlet.jsp.JspException;

import javax.servlet.jsp.PageContext;

import javax.servlet.jsp.tagext.JspFragment;

import javax.servlet.jsp.tagext.SimpleTagSupport;

import javax.servlet.jsp.tagext.TagSupport;

public class Hello extends TagSupport

{

    private String username;

    public String getUsername()

    {

        return username;

    }

    public void setUsername(String username)

    {

        this.username = username;

    }

    public int doStartTag() throws JspException

    {

        try

        {

           JspWriter out=pageContext.getOut();

           out.println("Welcome"+getUsername());

        }

        catch(Exception e)

        {

        }

        return SKIP_BODY;

    }

    public int doEndTag() throws JspException

    {

        return SKIP_PAGE;

    }

}



Step 4:

             Create jsp file named as Hello.jsp

< %@page contentType="text/html" pageEncoding="UTF-8"% >
< !DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
http://www.w3.org/TR/html4/loose.dtd >
< %@taglib uri="/WEB-INF/tlds/hello" prefix="hello" % >
< html >
< head >
< title > Hello JSP Page < /title >
< /head >
< body >
< h1 > Hello World! < /h1 >
< hello:Hello username="sureshkumar"/ >
< /body >
< /html >


Step 5:

Run the Hello.jsp

Step 6:

Get Output

Structure of the CustomTagProject
